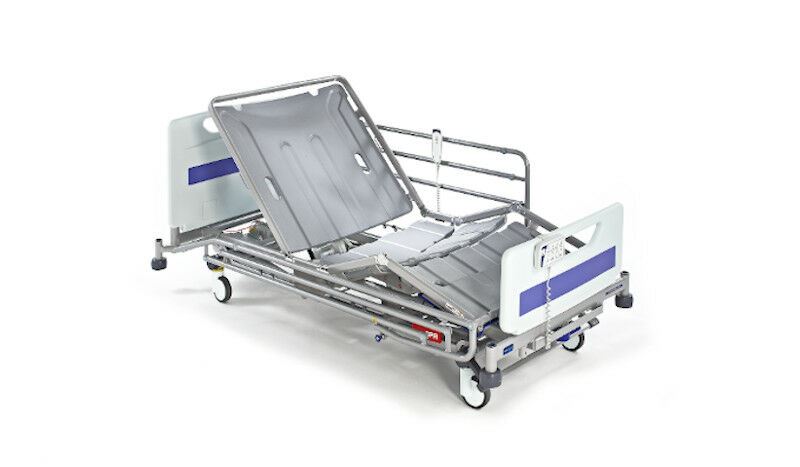

JCB E 2000X Hospital Bed
The JCB E 2000X Hospital Bed hospital bed from Arjo delivers significant benefits to the patient, caregiver and healthcare facility.
The daily challenges faced by nursing teams on hospital wards have inspired Arjo to improve upon an established solution, trusted by hospitals around the globe. In the development of the JCB E 2000X hospital bed, Arjo has focused on key customer needs common to all healthcare environments, namely:
• Safety for both patient and carer.
• Compliance with new international standards.
• Equipment that is robust, intuitive and easy to use.
• Solutions focused on the quality of care for patients.
• Safety for both patient and carer.
• Compliance with new international standards.
• Equipment that is robust, intuitive and easy to use.
• Solutions focused on the quality of care for patients.
Technical Information
Measurements and weights |
|
| Overall standard length | 2300 mm |
| Overall width | 1030 mm |
| Mattress length standard | 2020 mm |
| Mattress width | 880 mm |
| Overall extended length | 2420 mm |
| Mattress extended length | 2140 mm |
| Overall length short | 2190 mm |
| Mattress length short | 1910 mm |
| Top height (with 125 mm castors) | 760 mm |
| Low height (with 125 mm castors) | 320 mm |
| Backrest length | 850 mm |
| Seat length | 215 mm |
| Calf length | 560 mm |
| Thigh length |
365 mm |
| Safe working load/Maximum patient weight | 250 kg/185 kg |
| Head down tilt | 12° |
| Foot down tilt | 12° |
| Backrest angle | 62° |
| Backrest pause | 30° |
| Thigh angle | 20° |
| Calf angle | 16° |
| Ingress protection | IPX4 |
| Shock protection | Class 1, Type B |
